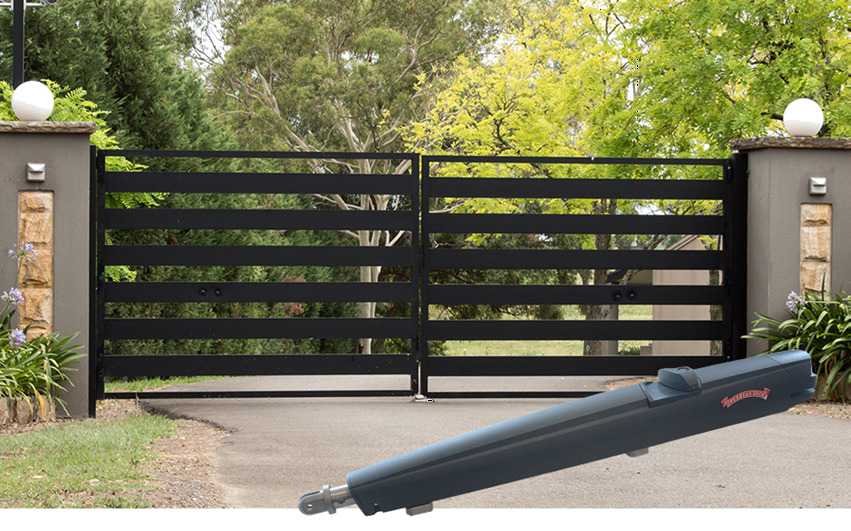

Residential Vehicular Swing Gate Operator RLA24V
The model RLA24V linear actuator gate operator is designed for residential swing gates that have up to a 150-cycle/day duty requirement. Advanced controls and a simplified LCD interface make installation and service fast and easy.
Residential Vehicular Swing Gate Operator RLA24V Overview
Construction
24VDC Motor
Worm gear primary reduction
Cast aluminum upper and lower body
Stainless steel extension tube
Keyed release lever for manual operation
Enclosure and controls ready for secondary arm, no additional boards needed
Specifications
115VAC, field adjustable to 230VAC
Duty Cycle 50% with up to 150 cycles per day
Rated for use on gates up to 16 ft wide or 850 lbs
-20° to +60°C
(2) 7Ah batteries included
2 Year warranty
UL Listed, Class I, II, III
24VDC switched and constant accessory power, up to 800mA combined
Gate Weight / Length Ratings:
| Weight | Length |
|---|---|
| 850 Lbs | 10 FT |
| 750 Lbs | 12 FT |
| 650 Lbs | 14 FT |
| 650 Lbs | 16 FT |
Standard Features
Dual line backlit LCD display
Adjustable speed
Advanced 315/390Mhz radio receiver stores up to 250 CodeDodger® transmitters with unique IDs
OHD Anywhere® ready (with optional Wi-Fi board)
Timer to close
Battery backup
Up to 250 cycles on fully charged batteries
On-board solar charge controller
Surge protection on field wiring inputs
Four monitored safety inputs
Two auxiliary relays, configurable from LCD
Built-in 7-day timer
Bi-parting delay, adjustable on LCD
Convenience Options
Solar panel kits
Secondary arm
Push to open the bracket
Post mount bracket for controls
33Ah Batteries
Wi-Fi board for OHD Anywhere®
